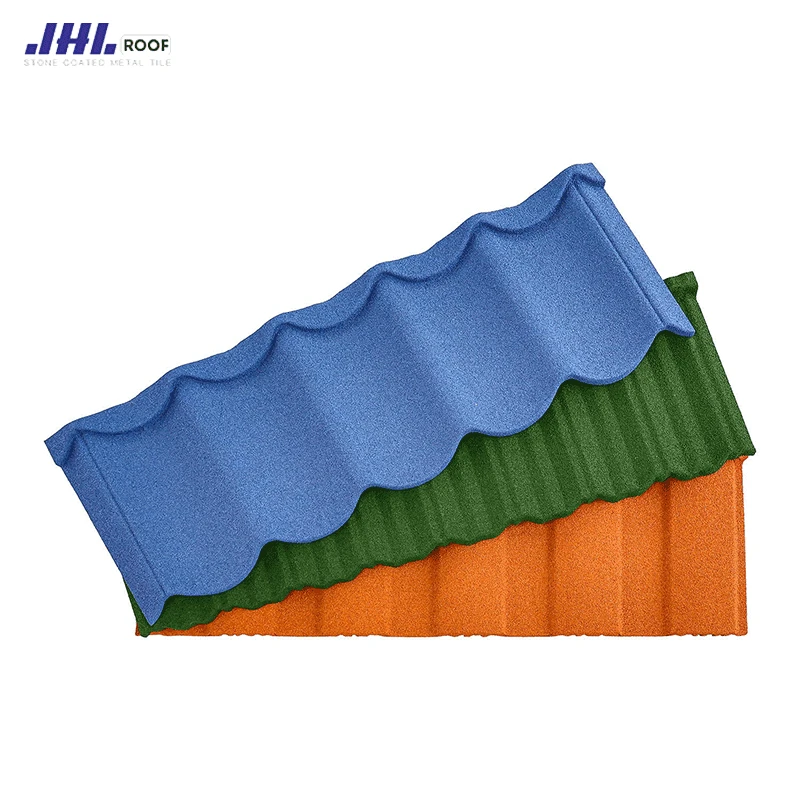

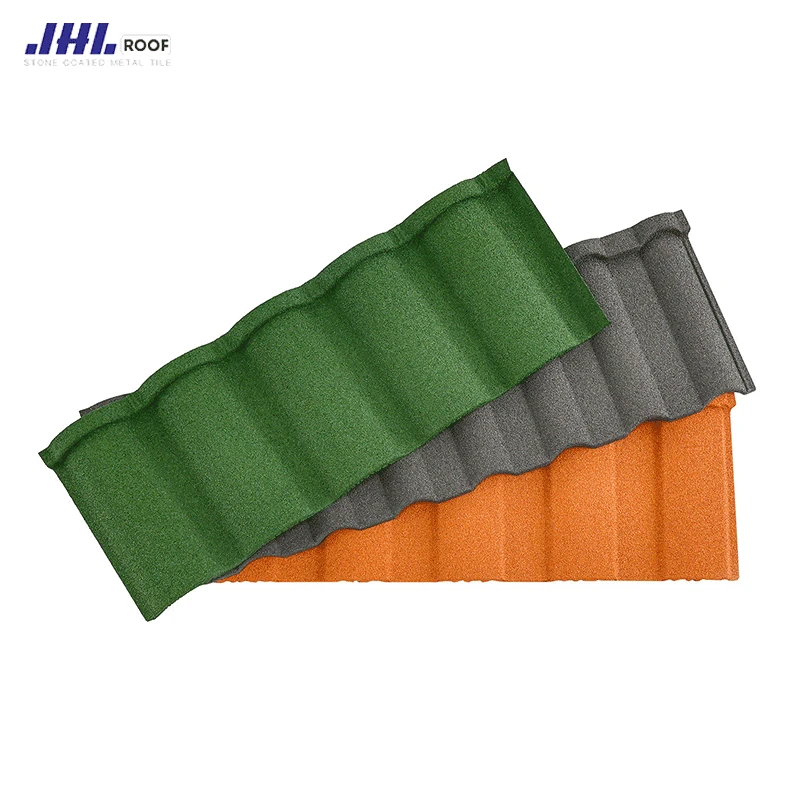

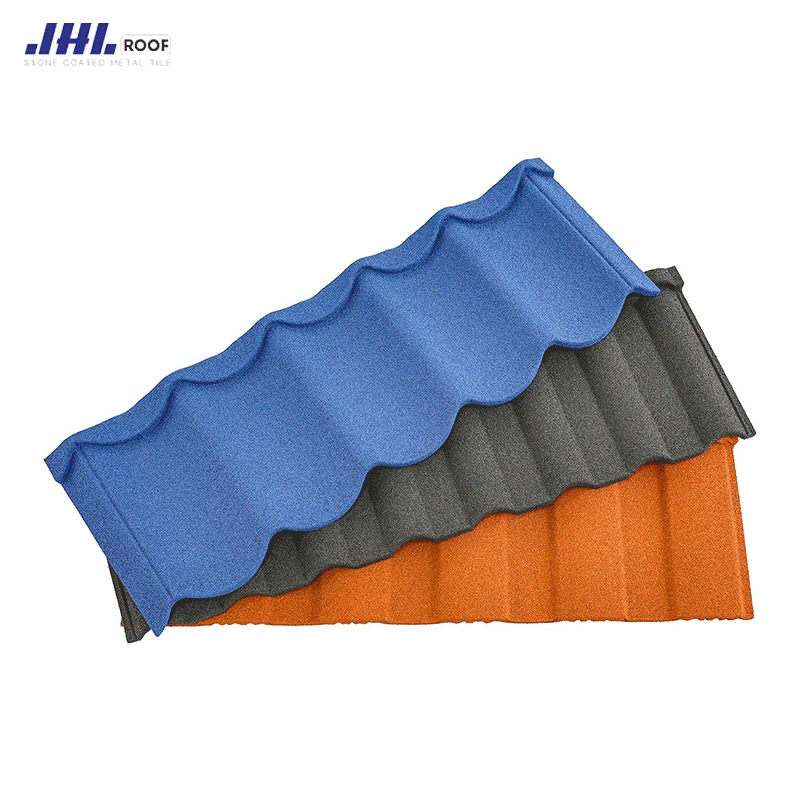

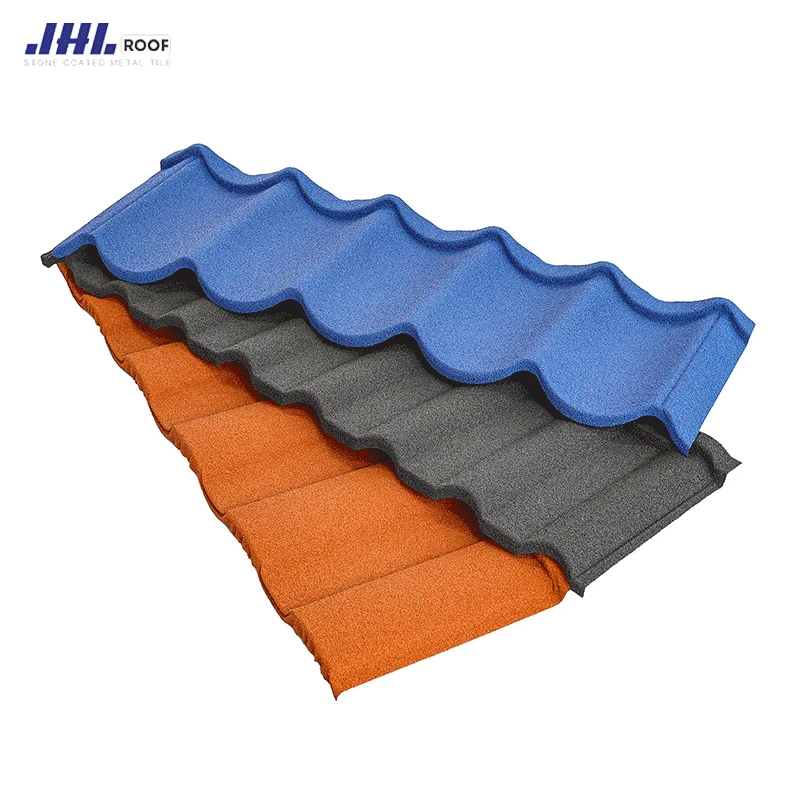

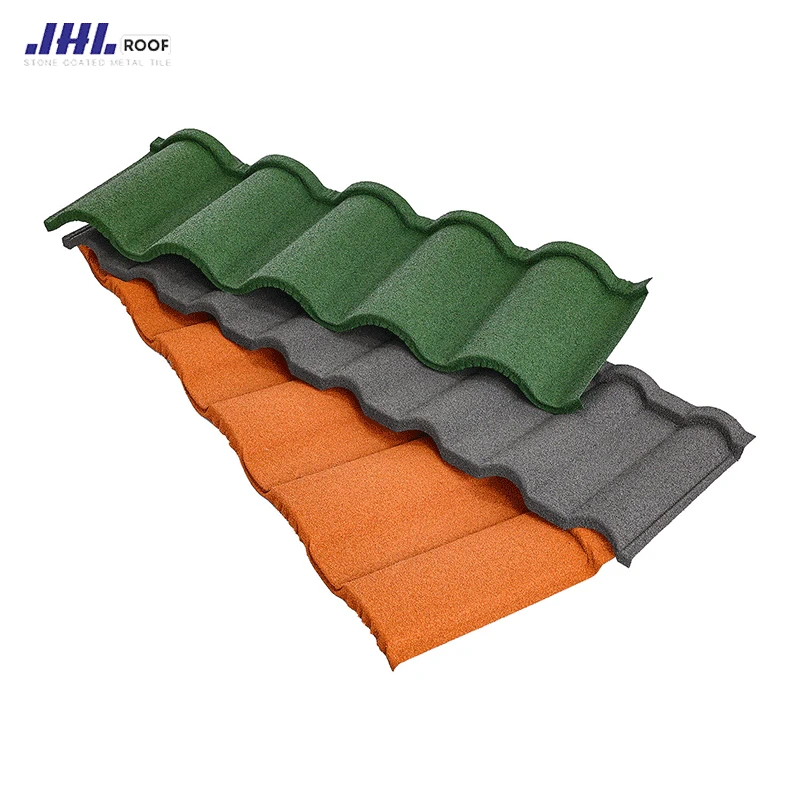

JHL Metal Stone Coated Roof Tiles

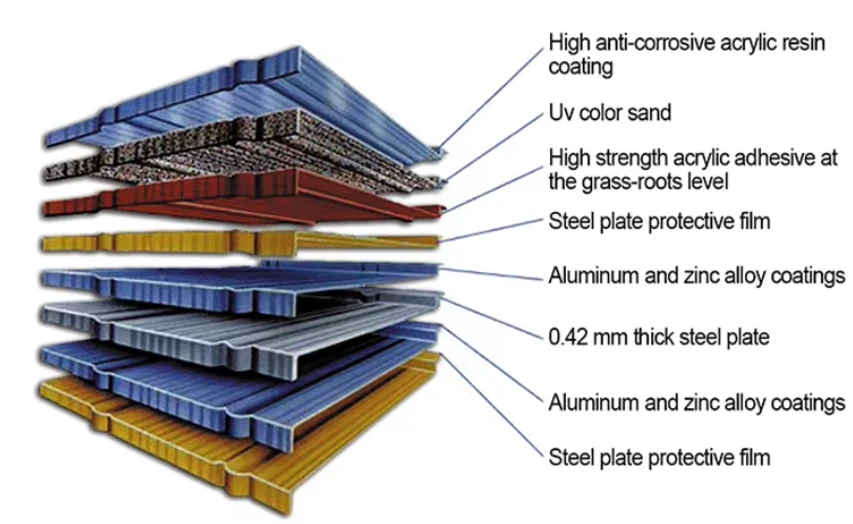

The stone coated metal tile consists of six functional layers.

1.Base layer: 0.4–0.6mm galvalume steel sheet made of 55% aluminum, 43.4% zinc and 1.6% silicon, which serves as the rigid support and resists rust.

2.Double-sided anti-fingerprint conversion coating, isolating moisture and boosting adhesive force.

3.Weather-resistant acrylic primer, sealing tiny pores to avoid delamination under high humidity.

4.Adhesive layer: high viscosity acrylic binder to lock stone grains tightly against rain erosion.

5.Surface layer: sintered natural basalt stone granules for UV resistance, noise reduction and stone texture.

6.Transparent top sealing coat, enhancing waterproof performance and preventing color fading. This multi-layer composite structure prevents sand loss, rusting and aging.

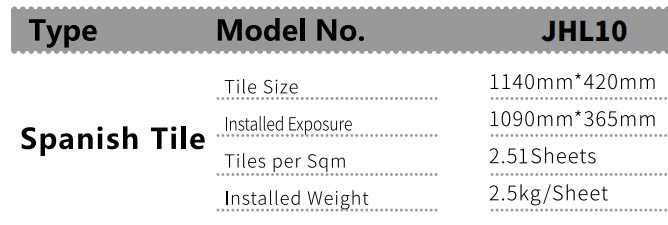

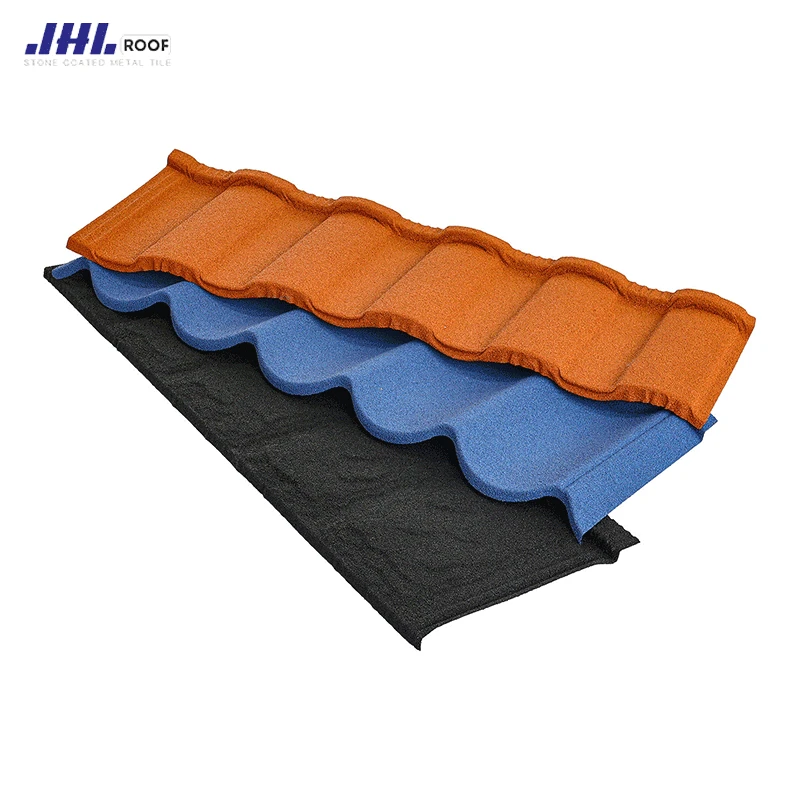

Our Spanish Tile Model JHL10 is a classic curved stone coated metal roof tile designed for global residential and villa construction. The overall tile dimension is 1140mm420mm, with the effective installed exposure size reaching 1090mm365mm after overlapping installation. Approximately 2.51 sheets are required to cover one square meter. Each tile weighs only 2.5kg, which greatly reduces the load on roof trusses. Made with multi-layer galvalume steel and natural basalt sand, this Spanish tile has excellent anti-rust, UV-resistant and waterproof performance. The curved Roman-style profile delivers elegant Mediterranean architectural effects. Lightweight, easy to transport and install, it fits perfectly for new roof projects and old building renovation across Europe, Africa and Southeast Asia, with a long service life of up to 50 years.

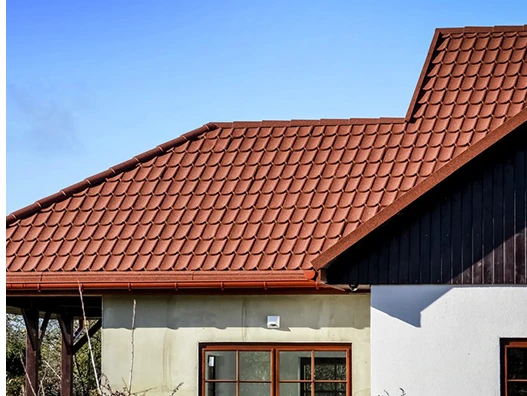

Stone coated metal tiles including our Spanish Tile JHL10 fit diverse construction projects globally. They are the ideal roofing material for private villas, country houses and residential cottages, creating classic Mediterranean architectural styles. The lightweight 2.5kg single tile structure makes them perfect for roof renovation, old house slope-changing reconstruction, without adding excess load to original building frames. These metal tiles are also widely adopted for tourist scenic spots, farm homestays, resort hotels and small commercial buildings such as stores and workshops. They perform reliably under harsh weather including strong coastal winds, tropical heavy rainfall and high UV sunlight, suiting projects in Africa, Southeast Asia and Europe. Additionally, they work well for gazebos, garden pavilions and temporary prefab buildings. Anti-corrosion and colorfast properties cut long-term maintenance work, making this tile a cost-effective choice for both new construction and retrofitting roofing projects.
